Diaphragm Valve
The Sing-Tao diaphragm valve is used to close, transfer or regulate the fluid flow of sanitary, high-purity and sterile pipelines. With compact structure, light weight and easy configuration, the valve can achieve manual or pneumatic operation, and meet almost any process requirements, including conditions with microbial control requirements such as food, dairy and biological pharmacy.
Features
The sterile diaphragm technology ensures high quality and pollution-free products
Compact structure and customizable multiple valve
Minimum dead area and maximum drainage and cleanability

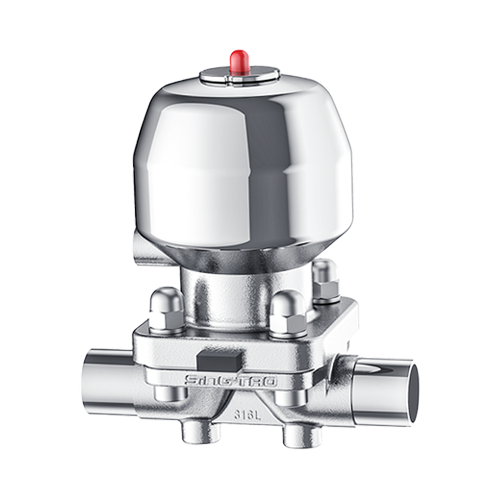

Pneumatic Diaphragm Valve
Technical specification
Nominal size: DN15～DN125 (0.5''~5'')
Temperature range: PTFE(TFM)-10℃~150℃
Operating pressure: 16bar
Automatic control unit: Feedback device and locator
Flap material: PTFE/EPDM
Body material: 304/316L
Connection types: Welding, clamping and combination of welding and clamping
Standards: Comply with DIN, ISO standard and 3A & CE certification

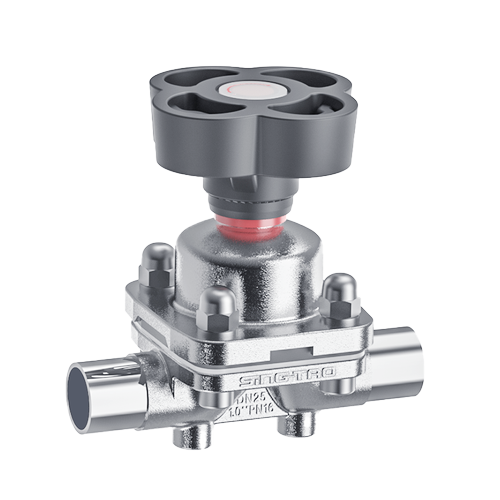

Manual Diaphragm Valve
Technical specification
Nominal size: DN15～DN125 (0.5''~5'')
Temperature range: PTFE(TFM)-10℃~150℃
Operating pressure: 16bar
Body material: 304/316L
Connection types: Welding, clamping and combination of welding and clamping
Standards: Comply with DIN, ISO standard and 3A & CE certification

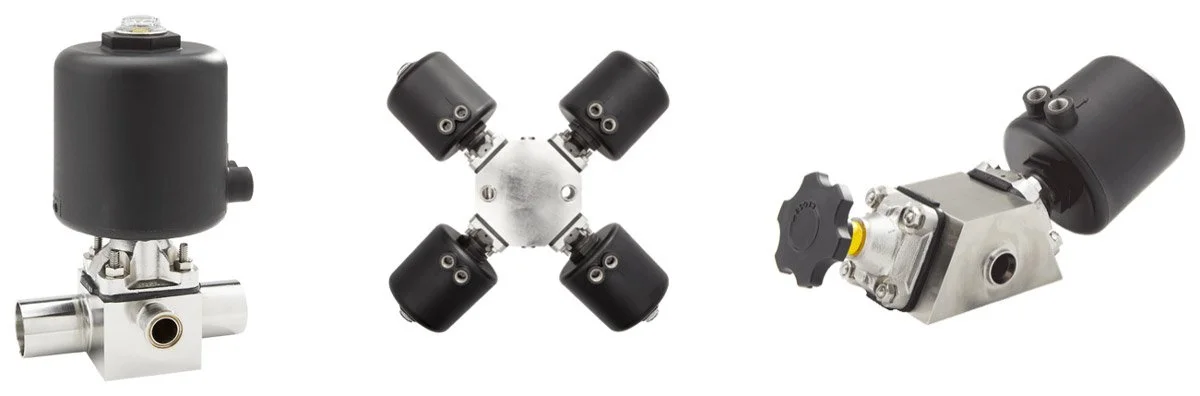

Customized Diaphragm Valve
The previous large multiple valves and line assemblies are transformed into smaller and more compact diaphragm valves, thereby reducing the process contact surface area, dead area and retention flow. The rapid prototyping process is used to customize and design the valve to specifically meet your process requirements.
Standards: ASME BPE
